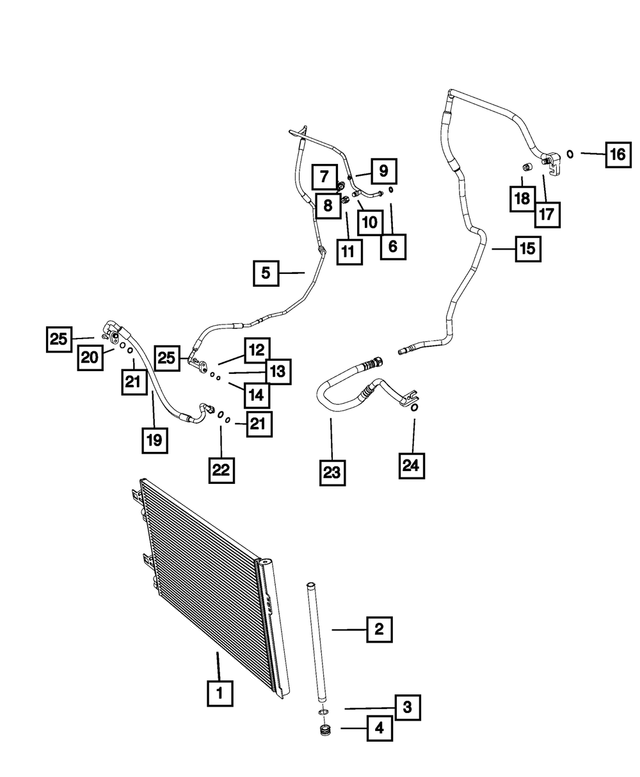

Air Conditioner and Heater Plumbing for 2020 Ram ProMaster 3500

Diagram 1 1. Tube Clip Diagram 2 2. Hose Bracket Diagram 3 3. Tube Clip
No.
Part # / Description / Price
Price
N/A
68134316AA - Air Conditioners and Heaters: Tube Clip for Mopar Image
Tube Clip
68134316AA
Mopar Mopar
Notes: Engines: 3.6L V6 24V VVT Engine. Transmissions: 6-SPEED AUTOMATIC 62TE TRANSMISSION.
MSRP $11.45
$8.50
MSRP $11.45
$8.50
N/A
68134596AA - Air Conditioners and Heaters: Tube Clip for Mopar Image
Tube Clip
68134596AA
Mopar Mopar
MSRP $29.75
$22.31
MSRP $29.75
$22.31
1
57008243AB - Air Conditioners and Heaters: Air Conditioning Condenser for Mopar Image
Air Conditioning Condenser
57008243AB
Mopar Mopar
Notes: Engines: 3.6L V6 24V VVT Engine.
MSRP $533.00
$366.85
MSRP $533.00
$366.85
2
68240019AA - Air Conditioners and Heaters: Filter for Mopar Image
Filter
68240019AA
Mopar Mopar
Notes: Engines: 3.6L V6 24V VVT Engine. Transmissions: 6-SPEED AUTOMATIC 62TE TRANSMISSION.
MSRP $53.55
$38.52
MSRP $53.55
$38.52
3
68240026AA - Air Conditioners and Heaters: Retainer for Mopar Image
Retainer
68240026AA
Mopar Mopar
Notes: Engines: 3.6L V6 24V VVT Engine. Transmissions: 6-SPEED AUTOMATIC 62TE TRANSMISSION.
MSRP $23.70
$17.56
MSRP $23.70
$17.56
4
68240020AA - Air Conditioners and Heaters: Plug for Mopar Image
Plug
68240020AA
Mopar Mopar
Notes: Engines: 3.6L V6 24V VVT Engine. Transmissions: 6-SPEED AUTOMATIC 62TE TRANSMISSION.
MSRP $50.80
$36.48
MSRP $50.80
$36.48
5
68228086AD - Air Conditioners and Heaters: A/c Liquid Line for Mopar Image
A/C Liquid Line
68228086AD
Mopar Mopar
Notes: Engines: 3.6L V6 24V VVT Engine.
MSRP $189.00
$128.80
MSRP $189.00
$128.80
5
68157080AF - Air Conditioners and Heaters: A/c Liquid Line for Mopar Image
A/C Liquid Line
68157080AF
Mopar Mopar
Notes: Engines: 3.6L V6 24V VVT Engine.
Description: A/C LIQUID
MSRP $267.00
$187.20
MSRP $267.00
$187.20
6
5183358AA - Air Conditioners and Heaters: A/c Line O Ring for Mopar Image
A/C Line O Ring
5183358AA
Mopar Mopar
Notes: Engines: 3.6L V6 24V VVT Engine. Transmissions: 6-SPEED AUTOMATIC 62TE TRANSMISSION.
Description: Switch to Line. Used at Switch. Suction line. For Transducer Valve.
MSRP $24.55
$18.19
MSRP $24.55
$18.19
7
5003862AA - Air Conditioners and Heaters: A/c Line Valve Core for Mopar Image
A/C Line Valve Core
5003862AA
Mopar Mopar
Notes: Engines: 3.6L V6 24V VVT Engine.
Description: Core. Accumulator.
MSRP $6.95
$5.06
MSRP $6.95
$5.06
8
68308727AA - Air Conditioners and Heaters: A/c Pressure Transducer Valve for Mopar Image
A/C Pressure Transducer Valve
68308727AA
Mopar Mopar
Notes: Engines: 3.6L V6 24V VVT Engine.
Description: 68308727aa. On Or After 06/28/2010. Includes: O-ring.
MSRP $144.00
$99.36
MSRP $144.00
$99.36
11
5161786AA - Air Conditioners and Heaters: A/c Charge Valve Cap for Mopar Image
A/C Charge Valve Cap
5161786AA
Mopar Mopar
Notes: Engines: 3.6L V6 24V VVT Engine.
Description: Accumulator. Liquid Line.
MSRP $4.80
$3.50
MSRP $4.80
$3.50
12
68100681AA - Air Conditioners and Heaters: Slim Line Seal for Mopar Image
Slim Line Seal
68100681AA
Mopar Mopar
Notes: Engines: 3.6L V6 24V VVT Engine.
Description: 1/2". 3/8".
MSRP $31.95
$23.81
MSRP $31.95
$23.81
13
68232799AA - Air Conditioners and Heaters: A/c O Ring for Mopar Image
A/C O Ring
68232799AA
Mopar Mopar
Notes: Engines: 3.6L V6 24V VVT Engine.
Description: Yellow.
MSRP $22.95
$17.00
MSRP $22.95
$17.00
14
68232802AA - Air Conditioners and Heaters: A/c O Ring for Mopar Image
A/C O Ring
68232802AA
Mopar Mopar
Notes: Engines: 3.6L V6 24V VVT Engine.
Description: Green.
MSRP $20.55
$15.31
MSRP $20.55
$15.31
15
68227136AD - Air Conditioners and Heaters: A/c Suction Line for Mopar Image
A/C Suction Line
68227136AD
Mopar Mopar
Notes: Engines: 3.6L V6 24V VVT Engine.
Description: To compressor.
MSRP $367.00
$256.23
MSRP $367.00
$256.23
15
68157071AE - Air Conditioners and Heaters: A/c Suction Line for Mopar Image
A/C Suction Line
68157071AE
Mopar Mopar
Notes: Engines: 3.6L V6 24V VVT Engine.
Description: To Compressor.
MSRP $160.00
$110.29
MSRP $160.00
$110.29
16
68100682AA - Air Conditioners and Heaters: Slim Line Seal for Mopar Image
Slim Line Seal
68100682AA
Mopar Mopar
Notes: Engines: 3.6L V6 24V VVT Engine.
Description: Suction Line to Accumulator. Expansion Valve End. Accumulator End After 5/27/08. Drier End. At Expansion Valve. After 6-17-08. 3/4". Lhd only. Suction line to H-Valve.
MSRP $31.70
$23.75
MSRP $31.70
$23.75
19
68157074AE - Air Conditioners and Heaters: A/c Discharge Line for Mopar Image
A/C Discharge Line
68157074AE
Mopar Mopar
Notes: Engines: 3.6L V6 24V VVT Engine.
MSRP $108.00
$74.00
MSRP $108.00
$74.00
21
68232795AA - Air Conditioners and Heaters: A/c O Ring for Mopar Image
A/C O Ring
68232795AA
Mopar Mopar
Notes: Engines: 3.6L V6 24V VVT Engine.
Description: Yellow.
MSRP $23.75
$17.63
MSRP $23.75
$17.63
22
68232796AA - Air Conditioners and Heaters: A/c O Ring for Mopar Image
A/C O Ring
68232796AA
Mopar Mopar
Notes: Engines: 3.6L V6 24V VVT Engine.
Description: Green.
MSRP $21.50
$15.94
MSRP $21.50
$15.94
25
6106156AA - Air Conditioners and Heaters: Screw for Mopar Image
Screw
6106156AA
Mopar Mopar
Description: M6x1x25. Line to Condenser Attaching. Discharge Line To Condenser. Discharge and Suction Line To Compressor.
MSRP $3.50
$2.56
MSRP $3.50
$2.56
