Home 2002 Dodge Ram 3500 Base 5.9L L6 - Diesel Gear Train

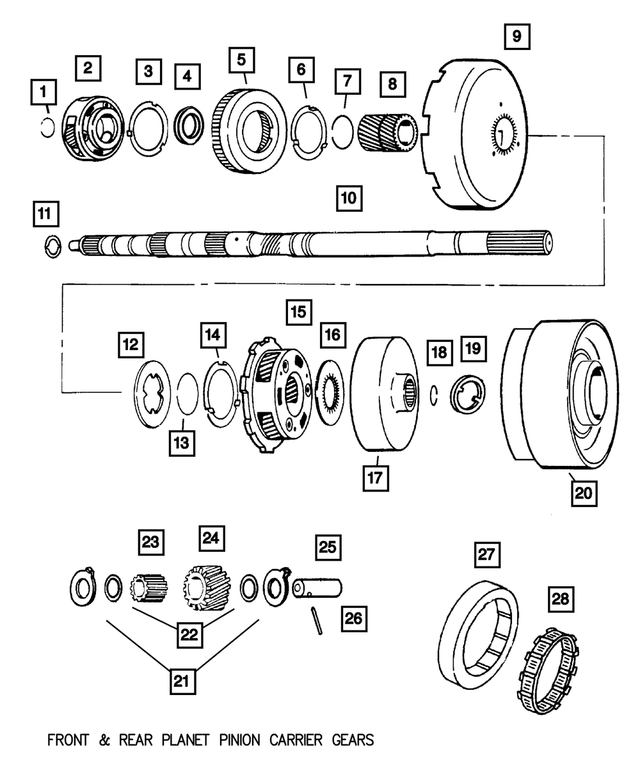

Gear Train for 2002 Dodge Ram 3500

1. Rear Clutch Retainer Seal

3. Rear Clutch Retainer Seal

4. Transmission Clutch Seal Package

10. Transmission Output Shaft

11. Output Shaft Bearing

12. Output Shaft Bearing

No.

Part # / Description / Price

Price

2

4617998 - Automatic Transmission 4 Speed: Planetary Pinion Carrier for Mopar Image

Planetary Pinion Carrier

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 47RE TRANSMISSION.

4

4617951 - Automatic Transmission 4 Speed: Support Case Bushing for Mopar Image

Support Case Bushing

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 47RE TRANSMISSION.

17

4810002AB - Automatic Transmission 4 Speed: Rear Annulus Gear for Mopar Image

Rear Annulus Gear

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION. 4-SPD. AUTOMATIC 47RE TRANSMISSION.

19

52118059 - Automatic Transmission 4 Speed: Reverse Drum Thrust Washer for Mopar Image

Reverse Drum Thrust Washer

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION. 4-SPD. AUTOMATIC 47RE TRANSMISSION.

20

52118057 - Automatic Transmission 4 Speed: Automatic Transmission Drum for Mopar Image

Automatic Transmission Drum

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION. 4-SPD. AUTOMATIC 47RE TRANSMISSION.

Description: With Race, Reverse.

23

3743664 - Automatic Transmission 4 Speed: Front And Rear Pinion Roller, Rear for Mopar Image

Pinion Roller

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION. 4-SPD. AUTOMATIC 47RE TRANSMISSION.

Description: Front.

MSRP $2.25

$1.63

MSRP $2.25

$1.63

28

4617199 - Automatic Transmission 4 Speed: Overrunning Clutch for Mopar Image

Overrunning Clutch

Mopar

Mopar

Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION. 4-SPD. AUTOMATIC 47RE TRANSMISSION.

Description: 14 Rollers Nylon Caged, "O".
