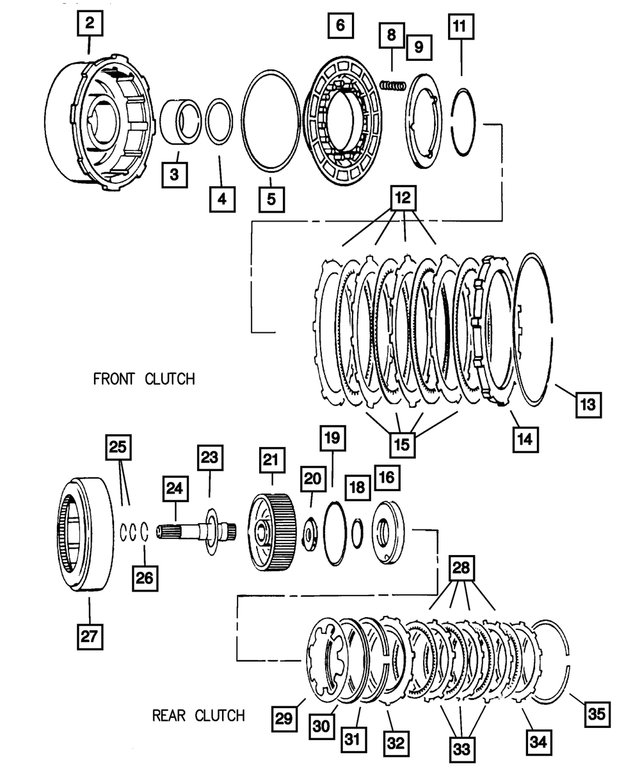

Gear Train for 2001 Dodge Ram 2500
1. Rear Clutch Retainer Seal
2. Check Ball
3. Rear Clutch Retainer Seal
4. Transmission Clutch Seal Package
5. Rear Clutch Snap Ring
6. Snap Ring
7. Snap Ring
8. Output Shaft Snap Ring
9. Snap Ring
10. Snap Ring
11. Transmission Output Shaft
12. Output Shaft
13. Output Shaft
14. Output Shaft
15. Transmission Output Shaft No.
Part # / Description / Price
Price
4
Front Clutch Piston Seal
Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION. 4-SPD. AUTOMATIC 47RE TRANSMISSION.
Description: Front Clutch Piston, Inner.
5
Front Piston Clutch Seal Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION. 4-SPD. AUTOMATIC 47RE TRANSMISSION.
Description: Front Clutch Piston, Outer.
6
Clutch Piston Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION. 4-SPD. AUTOMATIC 47RE TRANSMISSION.
Description: CLUTCH
9
Transmission Retainer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION. 4-SPD. AUTOMATIC 47RE TRANSMISSION.
Description: Front. Clutch Piston Spring.
12
Clutch Separator Plate Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION. 4-SPD. AUTOMATIC 47RE TRANSMISSION.
15
Direct Clutch Disc Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION. 4-SPD. AUTOMATIC 47RE TRANSMISSION.
18
Rear Clutch Piston Seal Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION. 4-SPD. AUTOMATIC 47RE TRANSMISSION.
Description: Rear Clutch Piston, Inner.
20
Output Shaft Thrust Washer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 42RE TRANSMISSION. 4-SPD. AUTOMATIC 46RE TRANSMISSION. 4-SPD. AUTOMATIC 47RE TRANSMISSION.
Description: Red .068. Intermediate Shaft, Thrust, with 3 Point Bronze Face, .068" Thk.
21
Transmission Retainer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION. 4-SPD. AUTOMATIC 47RE TRANSMISSION.
Description: Rear Clutch Piston.
23
Front Clutch Thrust Washer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION. 4-SPD. AUTOMATIC 47RE TRANSMISSION.
Description: [0.062`]. Front. Clutch Thrust, Rear. [.062` Thick].
24
Transmission Input Shaft Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION. 4-SPD. AUTOMATIC 47RE TRANSMISSION.
Description: Input.
25
Input Shaft Seal Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION. 4-SPD. AUTOMATIC 47RE TRANSMISSION.
Description: INPUT SHAFT
27
Rear Clutch Retainer Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION. 4-SPD. AUTOMATIC 47RE TRANSMISSION.
28
Clutch Disc Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION. 4-SPD. AUTOMATIC 47RE TRANSMISSION.
29
Rear Clutch Piston Spring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION. 4-SPD. AUTOMATIC 47RE TRANSMISSION.
31
Rear Clutch Spring Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION. 4-SPD. AUTOMATIC 47RE TRANSMISSION.
Description: Rear. Clutch Wave.
32
Clutch Pressure Plate Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION. 4-SPD. AUTOMATIC 47RE TRANSMISSION.
Description: Rear. Clutch Pressure, Front.
33
Clutch Separator Plate Mopar
Mopar Notes: Transmissions: 4-SPD. AUTOMATIC 46RE TRANSMISSION. 4-SPD. AUTOMATIC 47RE TRANSMISSION.
